SpringBoot OAuth2

一. IDEA 新建module(我是在原有的项目里面建的,因此创建module就行):oauth2,然后在pom文件中引入资源:

<!-- springboot 的版本 -->
<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.0.RELEASE</version>
        <relativePath/>
</parent>

<dependencies>
        <dependency>
            <groupId>org.springframework.security.oauth</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>2.3.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>

        <!-- Lombok 以及需要引入的依赖-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.6</version>
        </dependency>

        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>com.sun.xml.bind</groupId>
            <artifactId>jaxb-impl</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>com.sun.xml.bind</groupId>
            <artifactId>jaxb-core</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>javax.activation</groupId>
            <artifactId>activation</artifactId>
            <version>1.1.1</version>
        </dependency>



二. 创建公共实体及工具

  1. MD5加密工具:
    /*
     * To change this template, choose Tools | Templates
     * and open the template in the editor.
     */
    package com.cn.oauth.util;


    import java.math.BigDecimal;
    import java.math.BigInteger;

    public class HexUtils {

        static BigDecimal zero = new BigDecimal(0);

        /**
         * 16进制转10进制
         *
         * @param hex
         * @return
         */
        public static BigInteger hex2Integer(String hex) {
            if (hex.length() > 2) {
                if (hex.charAt('0') == 0 && (hex.charAt('x') == 1 || hex.charAt('X') == 1)) {
                    hex = hex.substring(2);
                }
                return new BigInteger(hex, 16);
            }
            return zero.toBigInteger();
        }


        public static byte[] toHex(byte[] digestByte) {
            byte[] rtChar = new byte[digestByte.length * 2];
            for (int i = 0; i < digestByte.length; i++) {
                byte b1 = (byte) (digestByte[i] >> 4 & 0x0f);
                byte b2 = (byte) (digestByte[i] & 0x0f);
                rtChar[i * 2] = (byte) (b1 < 10 ? b1 + 48 : b1 + 55);
                rtChar[i * 2 + 1] = (byte) (b2 < 10 ? b2 + 48 : b2 + 55);
            }
            return rtChar;
        }

        public static String toHexString(byte[] digestByte) {
            return new String(toHex(digestByte));
        }

        public static byte[] fromHex(byte[] sc) {
            byte[] res = new byte[sc.length / 2];
            for (int i = 0; i < sc.length; i++) {
                byte c1 = (byte) (sc[i] - 48 < 17 ? sc[i] - 48 : sc[i] - 55);
                i++;
                byte c2 = (byte) (sc[i] - 48 < 17 ? sc[i] - 48 : sc[i] - 55);
                res[i / 2] = (byte) (c1 * 16 + c2);
            }
            return res;
        }

        public static byte[] fromHexString(String hex) {
            return fromHex(hex.getBytes());
        }

        public static String encode(String in) {
            return new String(toHex(in.getBytes()));
        }

        public static String decode(String in) {
            return new String(fromHex(in.getBytes()));
        }
    }


    package com.cn.oauth.util;

    import java.security.MessageDigest;

    /**
     * description: MD5Util <br>
     * date: 2021/5/18 15:52 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    public class MD5Util {


        private static String byteArrayToHexString(byte b[]) {
            StringBuffer resultSb = new StringBuffer();
            for (int i = 0; i < b.length; i++)
                resultSb.append(byteToHexString(b[i]));

            return resultSb.toString();
        }

        private static String byteToHexString(byte b) {
            int n = b;
            if (n < 0)
                n += 256;
            int d1 = n / 16;
            int d2 = n % 16;
            return hexDigits[d1] + hexDigits[d2];
        }

        public static String MD5Encode(String origin, String charsetname) {
            String resultString = null;
            try {
                resultString = new String(origin);
                MessageDigest md = MessageDigest.getInstance("MD5");
                if (charsetname == null || "".equals(charsetname))
                    resultString = byteArrayToHexString(md.digest(resultString
                            .getBytes()));
                else
                    resultString = byteArrayToHexString(md.digest(resultString
                            .getBytes(charsetname)));
            } catch (Exception exception) {
            }
            return resultString;
        }

        private static final String hexDigits[] = {"0", "1", "2", "3", "4", "5",
                "6", "7", "8", "9", "a", "b", "c", "d", "e", "f"};


        public static String getStringMD5(String s) {
            try {
                if (s == null || "".equals(s.trim()))
                    return s;

                byte[] bytes = s.getBytes("UTF-8");
                MessageDigest md = MessageDigest.getInstance("MD5");
                md.update(bytes);
                bytes = md.digest();

                String hexString = HexUtils.toHexString(bytes);
                return hexString;
            } catch (Exception e) {
                return null;
            }
        }

    }



    2. 创建实体

    package com.cn.oauth.entity;

    import lombok.Getter;
    import lombok.Setter;
    import lombok.ToString;
    import lombok.experimental.Accessors;
    import org.springframework.security.core.GrantedAuthority;
    import org.springframework.security.core.userdetails.User;

    import javax.naming.Name;
    import java.util.Collection;

    /**
     * description: UserInfo <br>
     * date: 2021/5/18 15:49 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Setter
    @Getter
    @Accessors(chain = true)
    @ToString
    public class UserInfo extends User {

        /**
         * 以下可认为是扩展字段,比如用户年龄、性别、公司、头像 等等都可以放进去
         */

        private String id;
        private String name;
        private String companyId;
        private String desc = "";

        public UserInfo(String username, String password, String id, String desc, Collection<? extends GrantedAuthority> authorities) {
            super(username, password, authorities);
            this.id = id;
            this.name = username;
            this.companyId = "c_1";
            this.desc = desc;
        }

    }





    package com.cn.oauth.entity;

    import lombok.Getter;
    import lombok.Setter;
    import lombok.ToString;
    import lombok.experimental.Accessors;

    import java.io.Serializable;

    /**
     * description: ClUser <br>
     * date: 2021/5/18 15:48 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Setter
    @Getter
    @Accessors(chain = true)
    @ToString
    public class ClUser implements Serializable {

        private static final long serialVersionUID = -7797183521247423117L;
        private Integer id;
        private String userName;
        private String password;
    }

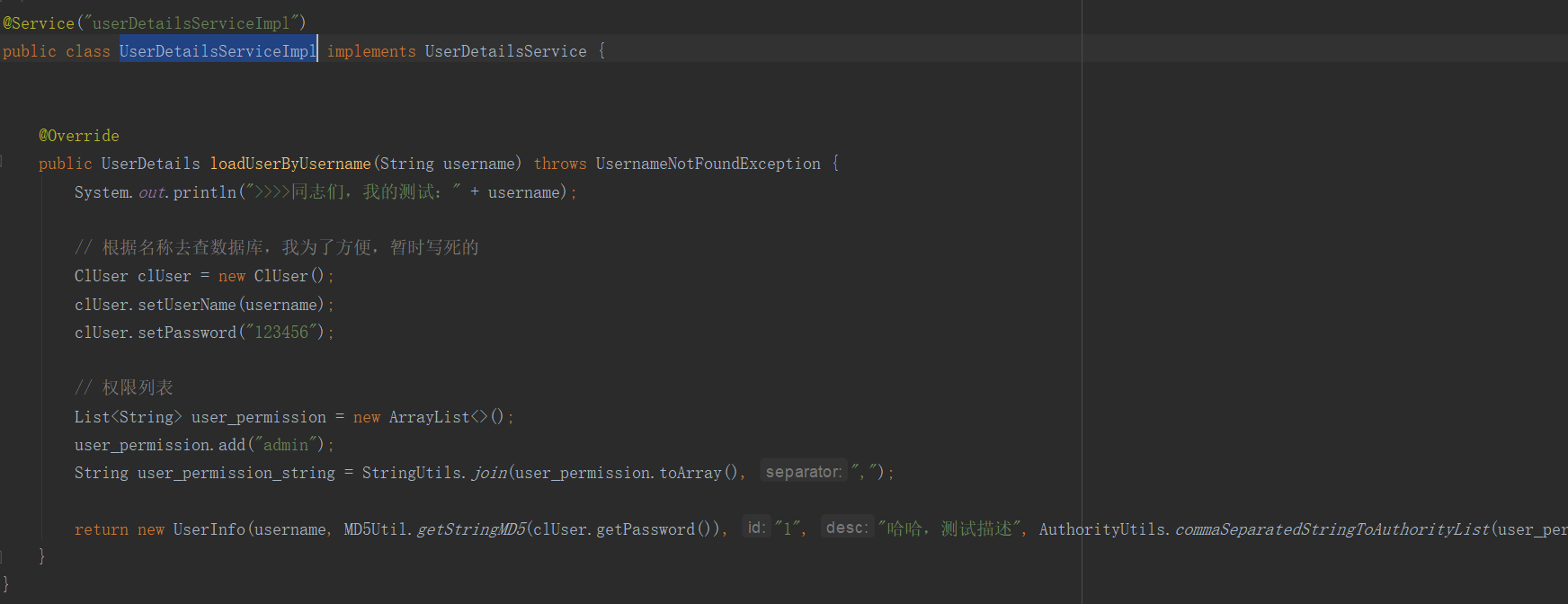

    3. 用户信息查询服务

    package com.cn.oauth.service;

    import com.cn.oauth.entity.ClUser;
    import com.cn.oauth.entity.UserInfo;
    import com.cn.oauth.util.MD5Util;
    import org.apache.commons.lang3.StringUtils;
    import org.springframework.security.core.authority.AuthorityUtils;
    import org.springframework.security.core.userdetails.UserDetails;
    import org.springframework.security.core.userdetails.UserDetailsService;
    import org.springframework.security.core.userdetails.UsernameNotFoundException;
    import org.springframework.stereotype.Service;

    import java.util.ArrayList;
    import java.util.List;

    /**
     * description: UserDetailsServiceImpl <br>
     * date: 2021/5/18 15:46 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Service("userDetailsServiceImpl")
    public class UserDetailsServiceImpl implements UserDetailsService {


        @Override
        public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
            System.out.println(">>>>同志们,我的测试:" + username);

            // 根据名称去查数据库,我为了方便,暂时写死的
            ClUser clUser = new ClUser();
            clUser.setUserName(username);
            clUser.setPassword("123456");

            // 权限列表
            List<String> user_permission = new ArrayList<>();
            user_permission.add("admin");
            String user_permission_string = StringUtils.join(user_permission.toArray(), ",");

            return new UserInfo(username, MD5Util.getStringMD5(clUser.getPassword()), "1", "哈哈,测试描述", AuthorityUtils.commaSeparatedStringToAuthorityList(user_permission_string));
        }
    }


    4. 目录结构如下:

三. 创建认证服务

  1. 创建module,名字为:oauth-service
  2. pom文件:
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <parent>
            <artifactId>oauth2</artifactId>
            <groupId>com.cn</groupId>
            <version>1.0.0</version>
        </parent>
        <modelVersion>4.0.0</modelVersion>

        <artifactId>oauth-service</artifactId>


        <dependencies>
            <!--引入签名创建的oauth-common公共模块 -->
            <dependency>
                <groupId>com.cn</groupId>
                <artifactId>oauth-common</artifactId>
                <version>1.0.0</version>
            </dependency>

            <!--引入mybatis-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>2.1.3</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.springframework.boot</groupId>
                        <artifactId>spring-boot-starter-logging</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <!--mysql驱动jar-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>5.1.45</version>
            </dependency>
        </dependencies>
    </project>

    3. 创建application.yml文件,内容如下,主要有redis、mysql 地址等信息:

    server:
      port: 10090

    spring:
      redis:
        host: 127.0.0.1
        port: 6379
        password:
        database: 0
      datasource:
        url: jdbc:mysql://127.0.0.1:3306/oauth2?useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai&zeroDateTimeBehavior=convertToNull
        driver-class-name: com.mysql.jdbc.Driver
        username: root
        password: root

    4. 创建启动类:OAuthServiceApplication

    package com.cn;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    /**
     * description: OAuthServiceApplication <br>
     * date: 2021/5/18 16:28 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @SpringBootApplication
    public class OAuthServiceApplication {
        public static void main(String[] args) {
            SpringApplication.run(OAuthServiceApplication.class, args);
            System.out.println("服务已启动");
        }
    }


    5. 创建 SecurityConfig

    package com.cn.config;

    import com.cn.oauth.util.MD5Util;
    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Qualifier;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.security.authentication.AuthenticationManager;
    import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
    import org.springframework.security.config.annotation.web.builders.HttpSecurity;
    import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
    import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
    import org.springframework.security.core.userdetails.UserDetailsService;
    import org.springframework.security.crypto.password.PasswordEncoder;

    /**
     * description: SecurityConfig <br>
     * date: 2021/5/18 15:44 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Configuration
    @EnableWebSecurity
    public class SecurityConfig extends WebSecurityConfigurerAdapter {

        /**
         * 用户信息查询服务(本示例中,已经在oauth-common 模块中创建好了)
         */
        @Autowired
        @Qualifier("userDetailsServiceImpl")
        private UserDetailsService userDetailsService;

        @Bean(name = "authenticationManagerBean")
        @Override
        public AuthenticationManager authenticationManagerBean() throws Exception {
            return super.authenticationManagerBean();
        }

        @Override
        protected void configure(HttpSecurity http) throws Exception {
            http.httpBasic().and().authorizeRequests()
                    .antMatchers("/oauth/**", "/login/**")
                    .permitAll()
                    .anyRequest()
                    .authenticated()
                    .and().csrf().disable();
        }

        @Override
        protected void configure(AuthenticationManagerBuilder auth) throws Exception {
            auth.userDetailsService(userDetailsService);
            super.configure(auth);
        }

        @Bean
        public PasswordEncoder passwordEncoder() {
            return new PasswordEncoder() {
                @Override
                public String encode(CharSequence charSequence) {
                    return MD5Util.getStringMD5(String.valueOf(charSequence));
                }

                @Override
                public boolean matches(CharSequence charSequence, String s) {
                    return s.equals(MD5Util.getStringMD5(String.valueOf(charSequence)));
                }
            };
        }


    }


    6. 创建 AuthorizationConfig

    package com.cn.config;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.beans.factory.annotation.Qualifier;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.context.annotation.Primary;
    import org.springframework.data.redis.connection.RedisConnectionFactory;
    import org.springframework.security.authentication.AuthenticationManager;
    import org.springframework.security.core.userdetails.UserDetailsService;
    import org.springframework.security.crypto.password.PasswordEncoder;
    import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
    import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
    import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
    import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
    import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
    import org.springframework.security.oauth2.provider.ClientDetailsService;
    import org.springframework.security.oauth2.provider.client.JdbcClientDetailsService;
    import org.springframework.security.oauth2.provider.code.AuthorizationCodeServices;
    import org.springframework.security.oauth2.provider.code.JdbcAuthorizationCodeServices;
    import org.springframework.security.oauth2.provider.token.DefaultTokenServices;
    import org.springframework.security.oauth2.provider.token.TokenStore;
    import org.springframework.security.oauth2.provider.token.store.redis.RedisTokenStore;

    import javax.sql.DataSource;

    /**
     * description: AuthorizationConfig <br>
     * date: 2021/5/18 15:43 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Configuration
    @EnableAuthorizationServer
    public class AuthorizationConfig extends AuthorizationServerConfigurerAdapter {

        /**
         * redis工厂,默认使用lettue
         */
        @Autowired
        public RedisConnectionFactory redisConnectionFactory;

        /**
         * 用户认证管理器
         */
        @Autowired
        @Qualifier("authenticationManagerBean")
        public AuthenticationManager authenticationManager;

        @Autowired
        private DataSource dataSource;

        /**
         * 用户信息查询服务(本示例中,已经在oauth-common 模块中创建好了)
         */
        @Autowired
        @Qualifier("userDetailsServiceImpl")
        private UserDetailsService userDetailsService;

        @Autowired
        private PasswordEncoder passwordEncoder;

        /**
         * 临时授权码存储
         *
         * @return
         */
        @Bean
        public AuthorizationCodeServices authorizationCodeServices() {
            return new JdbcAuthorizationCodeServices(dataSource);
        }

        @Bean
        public ClientDetailsService clientDetails() {
            var jdbcClientDetail = new JdbcClientDetailsService(dataSource);
            jdbcClientDetail.setPasswordEncoder(passwordEncoder);
            return jdbcClientDetail;
        }

        @Override
        public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
            clients.withClientDetails(clientDetails());
        }

        @Override
        public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
            //配置认证管理器
            endpoints.authenticationManager(authenticationManager)
                    //配置用户服务
                    .userDetailsService(userDetailsService)
                    //配置token存储的服务与位置
                    .tokenServices(tokenService())
                    //授权码存储(暂时存储在数据库中,可以优化存储到redis中)
                    .authorizationCodeServices(authorizationCodeServices())
                    .tokenStore(tokenStore());
        }

        @Override
        public void configure(AuthorizationServerSecurityConfigurer security) {
            // 表示支持 client_id 和 client_secret 做登录认证
            security.allowFormAuthenticationForClients();
        }

        @Bean
        public TokenStore tokenStore() {
            //使用redis存储token
            RedisTokenStore redisTokenStore = new RedisTokenStore(redisConnectionFactory);
            //设置redis token存储中的前缀
            redisTokenStore.setPrefix("auth-token:");
            return redisTokenStore;
        }

        @Bean
        @Primary
        public DefaultTokenServices tokenService() {
            DefaultTokenServices tokenServices = new DefaultTokenServices();
            //配置token存储
            tokenServices.setTokenStore(tokenStore());
            //开启支持refresh_token,此处如果之前没有配置,启动服务后再配置重启服务,可能会导致不返回token的问题,解决方式:清除redis对应token存储
            tokenServices.setSupportRefreshToken(true);
            //复用refresh_token
            tokenServices.setReuseRefreshToken(true);
            //token有效期,设置12小时
            tokenServices.setAccessTokenValiditySeconds(12 * 60 * 60);
            //refresh_token有效期,设置一周
            tokenServices.setRefreshTokenValiditySeconds(7 * 24 * 60 * 60);
            return tokenServices;
        }

    }


    7. 此时文件目录如下(图中oauth2目录不用管,那个是扩展):

    8. 创建表结构:

    SET NAMES utf8mb4;
    SET FOREIGN_KEY_CHECKS = 0;

    -- ----------------------------
    -- Table structure for oauth_access_token
    -- ----------------------------
    DROP TABLE IF EXISTS `oauth_access_token`;
    CREATE TABLE `oauth_access_token`  (
      `create_time` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
      `token_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `token` blob NULL,
      `authentication_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `user_name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `client_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `authentication` blob NULL,
      `refresh_token` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      INDEX `token_id_index`(`token_id`) USING BTREE,
      INDEX `authentication_id_index`(`authentication_id`) USING BTREE,
      INDEX `user_name_index`(`user_name`) USING BTREE,
      INDEX `client_id_index`(`client_id`) USING BTREE,
      INDEX `refresh_token_index`(`refresh_token`) USING BTREE
    ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

    -- ----------------------------
    -- Table structure for oauth_client_details
    -- ----------------------------
    DROP TABLE IF EXISTS `oauth_client_details`;
    CREATE TABLE `oauth_client_details`  (
      `client_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
      `resource_ids` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `client_secret` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `scope` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `authorized_grant_types` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `web_server_redirect_uri` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `authorities` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `access_token_validity` int(11) NULL DEFAULT NULL,
      `refresh_token_validity` int(11) NULL DEFAULT NULL,
      `additional_information` text CHARACTER SET utf8 COLLATE utf8_general_ci NULL,
      `create_time` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
      `archived` tinyint(1) NULL DEFAULT 0,
      `trusted` tinyint(1) NULL DEFAULT 0,
      `autoapprove` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT 'false',
      PRIMARY KEY (`client_id`) USING BTREE
    ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

    -- ----------------------------
    -- Records of oauth_client_details
    -- ----------------------------
    INSERT INTO `oauth_client_details` VALUES ('123', '1', 'E10ADC3949BA59ABBE56E057F20F883E', 'read,write,trust', 'authorization_code,password,refresh_token,implicit,client_credentials', 'https://www.baidu.com', NULL, 300, 300, NULL, '2021-05-19 09:24:12', 0, 0, 'false');

    -- ----------------------------
    -- Table structure for oauth_code
    -- ----------------------------
    DROP TABLE IF EXISTS `oauth_code`;
    CREATE TABLE `oauth_code`  (
      `create_time` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
      `code` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `authentication` blob NULL,
      INDEX `code_index`(`code`) USING BTREE
    ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

    -- ----------------------------
    -- Table structure for oauth_refresh_token
    -- ----------------------------
    DROP TABLE IF EXISTS `oauth_refresh_token`;
    CREATE TABLE `oauth_refresh_token`  (
      `create_time` timestamp(0) NOT NULL DEFAULT CURRENT_TIMESTAMP(0),
      `token_id` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
      `token` blob NULL,
      `authentication` blob NULL,
      INDEX `token_id_index`(`token_id`) USING BTREE
    ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

    SET FOREIGN_KEY_CHECKS = 1;

    9. 运行项目:

       10. 测试秘密模式获取token:

           在postman职工执行:http://127.0.0.1:10090/oauth/token?client_id=123&client_secret=123456&grant_type=password&redirect_uri=https://www.baidu.com&username=1&password=123456

           以上请求中,client_id、client_secret、redirect_uri 等参数已经预先在 oauth_client_details 表中创建好了,其中在数据库中 client_secret 是md5加密后的值。例如本示例 client_secret=123456,它在数据库表oauth_client_details 的值为:E10ADC3949BA59ABBE56E057F20F883E。username、 password 本示例已经在 oauth-common模块中的 UserDetailsServiceImpl 中写成死的了。如图:

   如图:

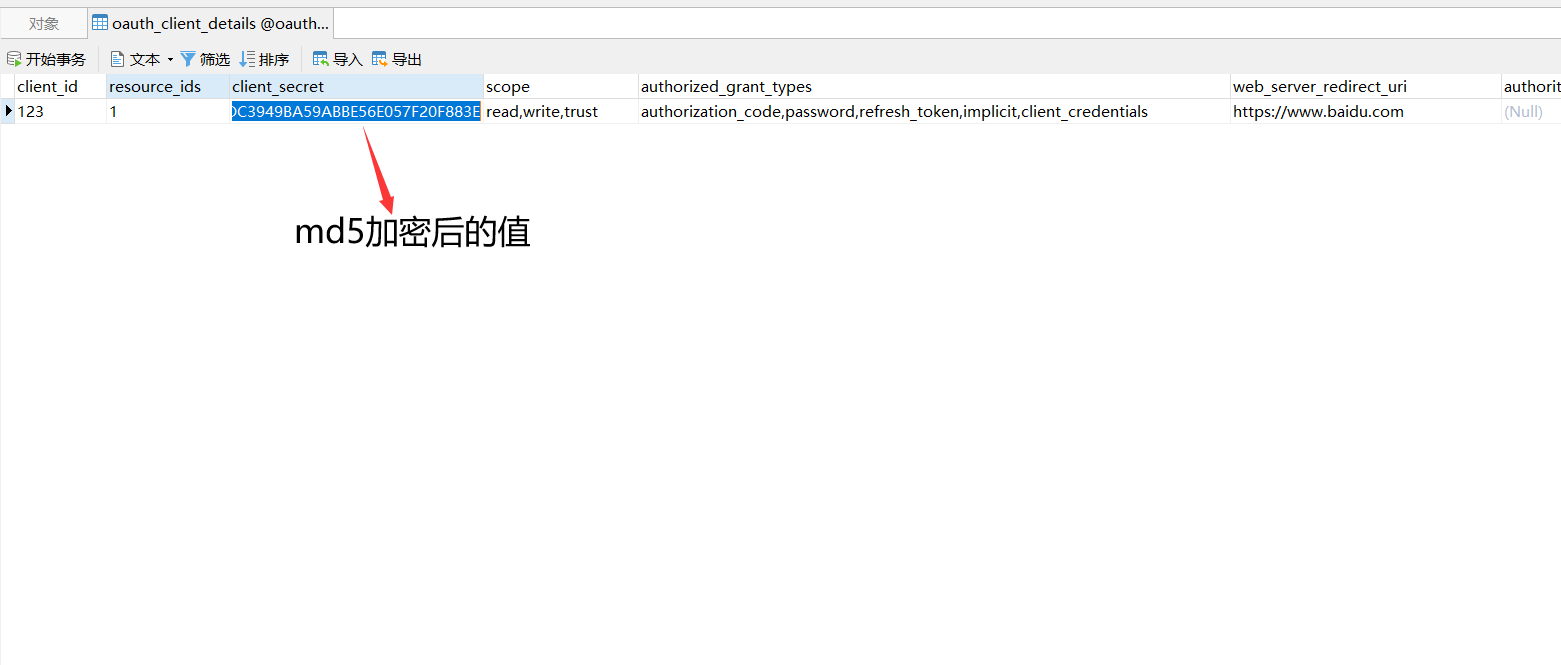

oauth_client_details表详情



UserDetailsServiceImpl用户身份信息查询业务类



             postman执行后的结果如下:

11. 授权模式测试:

  • get请求获取code:http://localhost:10090/oauth/authorize?client_id=123&response_type=code&scope=trust&redirect_uri=https://www.baidu.com
    • 以上步骤中 redirect_uri  要与 数据库表 oauth_client_details 中的 redirect_uri   保持一致
  • post请求获取token:  http://127.0.0.1:10090/oauth/token?client_id=123&client_secret=123456&grant_type=authorization_code&code=966FEF&redirect_uri=https://www.baidu.com
    • 以上步骤中的code 是第一步获取的code值
    • redirect_uri  要与 数据库表 oauth_client_details 中的 redirect_uri   保持一致



 四. 创建资源服务 module:  oauth-resources

  1.  pom文件如下:
    ​
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <parent>
            <artifactId>oauth2</artifactId>
            <groupId>com.cn</groupId>
            <version>1.0.0</version>
        </parent>
        <modelVersion>4.0.0</modelVersion>

        <artifactId>oauth-resources</artifactId>

        <dependencies>
            <dependency>
                <groupId>com.cn</groupId>
                <artifactId>oauth-common</artifactId>
                <version>1.0.0</version>
            </dependency>
        </dependencies>

    </project>

    ​
  2. 创建 application.yml 文件
    server:
      port: 10091

    spring:
      redis:
        host: 127.0.0.1
        port: 6379
        password:
        database: 0



  3. 创建启动类:OAuthResourcesApplication
    package com.cn;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;

    /**
     * description: OAuthResourcesApplication <br>
     * date: 2021/5/18 16:28 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @SpringBootApplication
    public class OAuthResourcesApplication {

        public static void main(String[] args) {
            SpringApplication.run(OAuthResourcesApplication.class, args);
            System.out.println("服务已启动");
        }

    }




  4. 创建资源服务:ResourceServerConfig
    package com.cn.config;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.data.redis.connection.RedisConnectionFactory;
    import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
    import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
    import org.springframework.security.oauth2.config.annotation.web.configurers.ResourceServerSecurityConfigurer;
    import org.springframework.security.oauth2.provider.token.store.redis.RedisTokenStore;

    /**
     * description: ResourceServerConfig <br>
     * date: 2021/5/18 16:17 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Configuration
    @EnableResourceServer
    public class ResourceServerConfig extends ResourceServerConfigurerAdapter {

        //该属性可以设置成固定的,对应的数据库中 oauth_client_details 表中的resource_ids 保持一致
        private final static String RESOURCE_IDS = "1";

        @Autowired
        private RedisConnectionFactory redisConnectionFactory;

        @Override
        public void configure(ResourceServerSecurityConfigurer resources) throws Exception {
            resources.resourceId(RESOURCE_IDS);
            //无状态
            resources.stateless(true);
            //设置token存储
            resources.tokenStore(tokenStore());
        }

        /**
         * 设置token存储,这一点配置要与授权服务器相一致
         */
        @Bean
        public RedisTokenStore tokenStore() {
            RedisTokenStore redisTokenStore = new RedisTokenStore(redisConnectionFactory);
            redisTokenStore.setPrefix("auth-token:");
            return redisTokenStore;
        }

    }




  5. 创建身份认证服务:SecurityConfig
    package com.cn.config;

    import org.springframework.context.annotation.Configuration;
    import org.springframework.http.HttpMethod;
    import org.springframework.security.config.annotation.web.builders.HttpSecurity;
    import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
    import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

    /**
     * description: SecurityConfig <br>
     * date: 2021/5/18 15:44 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @Configuration
    @EnableWebSecurity
    public class SecurityConfig extends WebSecurityConfigurerAdapter {

        @Override
        protected void configure(HttpSecurity http) throws Exception {
            http.csrf().disable()
                    .authorizeRequests()//限定签名成功的请求
                    .anyRequest().authenticated()
                    .and()
                    .httpBasic();

    //        http.csrf().disable()//禁用了csrf(跨站请求伪造)功能
    //                .authorizeRequests()//限定签名成功的请求
    //                //放行options方法请求
    //                .antMatchers(HttpMethod.OPTIONS).permitAll()
    //                //必须认证过后才可以访问;注意:hasAnyRole 会默认加上ROLE_前缀,而hasAuthority不会加前缀
    //                .antMatchers("/demo/**").hasAuthority("user") // 在角色过滤的时候需要注意user角色需要加角色前缀
    //                .and()
    //                .httpBasic()
            ;
        }

    }




  6. 创建测试类:
    package com.cn.web.demo;

    import com.alibaba.fastjson.JSON;
    import org.springframework.security.access.prepost.PreAuthorize;
    import org.springframework.security.core.Authentication;
    import org.springframework.security.core.context.SecurityContextHolder;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.RequestMapping;
    import org.springframework.web.bind.annotation.RestController;

    /**
     * description: DemoController <br>
     * date: 2021/5/18 16:19 <br>
     * author: cn_yaojin <br>
     * version: 1.0 <br>
     */
    @RestController
    @RequestMapping(value = "demo")
    public class DemoController {

        @GetMapping(value = "find")
        public Object find() {
            //打印身份信息(从redis中获取的)
            Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
            String txt = JSON.toJSONString(authentication);
            System.out.println(txt);
            return authentication;
        }

    }




  7.  资源服务文件目录结构如图:
    资源服务目录结构
  8. 启动资源服务:
  9. 测试接口:
    1.  测试url: http://127.0.0.1:10091/demo/find , 测试接口时需要加token,token在 上文认证服务中已经获取到了。
    2.  java 测试代码如下:
      public static void main(String[] args) {
              String url = "http://127.0.0.1:10091/demo/find";
              Map<String, String> header = new HashMap<>();
              header.put("Authorization", "Bearer 56eb4959-216d-4f83-9beb-31157de7cd12");
              String result = HttpUtil2.doGet(url, header);
              System.out.println(result);
          }



  10. 爱上了东风科技



热门文章

暂无图片
编程学习 ·

exe4j详细使用教程(附下载安装链接)

一、exe4j介绍 ​ exe4j是一个帮助你集成Java应用程序到Windows操作环境的java可执行文件生成工具&#xff0c;无论这些应用是用于服务器&#xff0c;还是图形用户界面&#xff08;GUI&#xff09;或命令行的应用程序。如果你想在任务管理器中及Windows XP分组的用户友好任务栏…
暂无图片
编程学习 ·

AUTOSAR从入门到精通100讲(126)-浅谈车载充电系统通信方案

01 引言 本文深入研究车载充电系统策略,设计出一套基于电动汽车电池管理系统与车载充电机的CAN通信协议,可供电动汽车设计人员参考借鉴。 02 电动汽车充电系统通讯网络 电动汽车整车控制系统中采用的是CAN总线通信方式,由一个整车内部高速CAN网络、内部低速CAN网络和一个充电…
暂无图片
编程学习 ·

CMake(九):生成器表达式

当运行CMake时&#xff0c;开发人员倾向于认为它是一个简单的步骤&#xff0c;需要读取项目的CMakeLists.txt文件&#xff0c;并生成相关的特定于生成器的项目文件集(例如Visual Studio解决方案和项目文件&#xff0c;Xcode项目&#xff0c;Unix Makefiles或Ninja输入文件)。然…
暂无图片
编程学习 ·

47.第十章 网络协议和管理配置 -- 网络配置(八)

4.3.3 route 命令 路由表管理命令 路由表主要构成: Destination: 目标网络ID,表示可以到达的目标网络ID,0.0.0.0/0 表示所有未知网络,又称为默认路由,优先级最低Genmask:目标网络对应的netmaskIface: 到达对应网络,应该从当前主机哪个网卡发送出来Gateway: 到达非直连的网络,…
暂无图片
编程学习 ·

元宇宙技术基础

请看图&#xff1a; 1、通过AR、VR等交互技术提升游戏的沉浸感 回顾游戏的发展历程&#xff0c;沉浸感的提升一直是技术突破的主要方向。从《愤怒的小鸟》到CSGO,游戏建模方式从2D到3D的提升使游戏中的物体呈现立体感。玩家在游戏中可以只有切换视角&#xff0c;进而提升沉浸…
暂无图片
编程学习 ·

flink的伪分布式搭建

一 flink的伪分布式搭建 1.1 执行架构图 1.Flink程序需要提交给 Job Client2.Job Client将作业提交给 Job Manager3.Job Manager负责协调资源分配和作业执行。 资源分配完成后&#xff0c;任务将提交给相应的 Task Manage。4.Task Manager启动一个线程以开始执行。Task Manage…
暂无图片
编程学习 ·

十进制正整数与二进制字符串的转换(C++)

Function one&#xff1a; //十进制数字转成二进制字符串 string Binary(int x) {string s "";while(x){if(x % 2 0) s 0 s;else s 1 s;x / 2;}return s; } Function two&#xff1a; //二进制字符串变为十进制数字 int Decimal(string s) {int num 0, …
暂无图片
编程学习 ·

[含lw+源码等]微信小程序校园辩论管理平台+后台管理系统[包运行成功]Java毕业设计计算机毕设

项目功能简介: 《微信小程序校园辩论管理平台后台管理系统》该项目含有源码、论文等资料、配套开发软件、软件安装教程、项目发布教程等 本系统包含微信小程序做的辩论管理前台和Java做的后台管理系统&#xff1a; 微信小程序——辩论管理前台涉及技术&#xff1a;WXML 和 WXS…
暂无图片
编程学习 ·

树莓派驱动DHT11温湿度传感器

1&#xff0c;直接使用python库 代码如下 import RPi.GPIO as GPIO import dht11 import time import datetimeGPIO.setwarnings(True) GPIO.setmode(GPIO.BCM)instance dht11.DHT11(pin14)try:while True:result instance.read()if result.is_valid():print(ok)print(&quo…
暂无图片
编程学习 ·

ELK简介

ELK简介 ELK是三个开源软件的缩写&#xff0c;Elasticsearch、Logstash、Kibana。它们都是开源软件。不过现在还新增了一个 Beats&#xff0c;它是一个轻量级的日志收集处理工具(Agent)&#xff0c;Beats 占用资源少&#xff0c;适合于在各个服务器上搜集日志后传输给 Logstas…
暂无图片
编程学习 ·

Linux 基础

通常大数据框架都部署在 Linux 服务器上&#xff0c;所以需要具备一定的 Linux 知识。Linux 书籍当中比较著名的是 《鸟哥私房菜》系列&#xff0c;这个系列很全面也很经典。但如果你希望能够快速地入门&#xff0c;这里推荐《Linux 就该这么学》&#xff0c;其网站上有免费的电…
暂无图片
编程学习 ·

Windows2022 无线网卡装不上驱动

想来 Windows2022 和 windows10/11 的驱动应该差不多通用的&#xff0c;但是死活装不上呢&#xff1f; 搜一下&#xff0c;有人提到 “默认安装时‘无线LAN服务’是关闭的&#xff0c;如果需要开启&#xff0c;只需要在“添加角色和功能”中&#xff0c;选择开启“无线LAN服务…
暂无图片
编程学习 ·

【嵌入式面试宝典】版本控制工具Git常用命令总结

目录 创建仓库 查看信息 版本回退 版本检出 远程库 Git 创建仓库 git initgit add <file> 可反复多次使用&#xff0c;添加多个文件git commit -m <message> 查看信息 git status 仓库当前的状态git diff 差异对比git log 历史记录&#xff0c;提交日志--pret…
暂无图片
编程学习 ·

用Postman生成测试报告

newman newman是一款基于nodejs开发的可以运行postman脚本的工具&#xff0c;使用Newman&#xff0c;可以直接从命令运行和测试postman集合。 安装nodejs 下载地址&#xff1a;https://nodejs.org/en/download/ 选择自己系统相对应的版本内容进行下载&#xff0c;然后傻瓜式安…
暂无图片
编程学习 ·

Java面向对象之多态、向上转型和向下转型

文章目录前言一、多态二、引用类型之间的转换Ⅰ.向上转型Ⅱ.向下转型总结前言 今天继续Java面向对象的学习&#xff0c;学习面向对象的第三大特征&#xff1a;多态&#xff0c;了解多态的意义&#xff0c;以及两种引用类型之间的转换&#xff1a;向上转型、向下转型。  希望能…
